GT911 CTP Configs

4,3 Inch TN 480 x 272
https://aliexpress.ru/item/1005005975928039.html?spm=a2g2w.orderdetail.0.0.e70b4aa6QBL5bc&sku_id=12000035132431467

Config Data

41 E0 01 10 01 05 3D 00 01 08 3C 05 78 50 03 05 00 00 00 00 00 00 00 1A 1C 1E 14 8B 2A 0C 2A 28 EB 04 00 00 01 02 03 2C 00 01 00 00 00 00 00 00 00 00 00 14 3C 94 45 02 08 00 00 04 B7 16 00 9F 1B 00 8B 22 00 7B 2B 00 70 36 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 02 04 06 08 0A 0C 0E 10 12 14 16 18 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 24 22 21 20 1F 1E 1D 1C 18 16 13 12 10 0F 0C 0A 08 06 04 02 00 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 9F 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

0x41, 0xE0, 0x01, 0x10, 0x01, 0x05, 0x3D, 0x00, 0x01, 0x08, 0x3C, 0x05, 0x78, // 0x8047 — 0x8053
0x50, 0x03, 0x05, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x1A, 0x1C, 0x1E, // 0x8054 — 0x8060
0x14, 0x8B, 0x2A, 0x0C, 0x2A, 0x28, 0xEB, 0x04, 0x00, 0x00, 0x01, 0x02, 0x03, // 0x8061 — 0x806D
0x2C, 0x00, 0x01, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x14, // 0x806E — 0x807A
0x3C, 0x94, 0x45, 0x02, 0x08, 0x00, 0x00, 0x04, 0xB7, 0x16, 0x00, 0x9F, 0x1B, // 0x807B — 0x8087
0x00, 0x8B, 0x22, 0x00, 0x7B, 0x2B, 0x00, 0x70, 0x36, 0x00, 0x70, 0x00, 0x00, // 0x8088 — 0x8094
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, // 0x8095 — 0x80A1
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, // 0x80A2 — 0x80AD
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x02, 0x04, 0x06, 0x08, 0x0A, // 0x80AE — 0x80BA
0x0C, 0x0E, 0x10, 0x12, 0x14, 0x16, 0x18, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, // 0x80BB — 0x80C7
0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x24, // 0x80C8 — 0x80D4
0x22, 0x21, 0x20, 0x1F, 0x1E, 0x1D, 0x1C, 0x18, 0x16, 0x13, 0x12, 0x10, 0x0F, // 0x80D5 — 0x80E1
0x0C, 0x0A, 0x08, 0x06, 0x04, 0x02, 0x00, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, // 0x80E2 — 0x80EE
0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, // 0x80EF — 0x80FB
0xFF, 0xFF, 0x9F, 0x00 // 0x80FC — 0x8100

4,3 Inch TN 480 x 272
https://aliexpress.ru/item/1005006860577413.html?spm=a2g2w.orderdetail.0.0.4a774aa6zozyuG&sku_id=12000038540960600

Config Data

0x41, 0xE0, 0x01, 0x10, 0x01, 0x0A, 0x0D, 0x20, 0x01, 0x0A, 0x28, 0x0F, 0x5A, // 0x8047 — 0x8053
0x3C, 0x03, 0x05, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x05, 0x00, 0x00, 0x00, // 0x8054 — 0x8060
0x00, 0x8A, 0x2A, 0x0C, 0x32, 0x34, 0x0C, 0x08, 0x00, 0x00, 0x00, 0x03, 0x02, // 0x8061 — 0x806D
0x25, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x28, // 0x806E — 0x807A
0x55, 0x94, 0xC5, 0x02, 0x07, 0x00, 0x00, 0x04, 0x8D, 0x2B, 0x00, 0x80, 0x32, // 0x807B — 0x8087
0x00, 0x75, 0x3A, 0x00, 0x6C, 0x43, 0x00, 0x64, 0x4F, 0x00, 0x64, 0x00, 0x00, // 0x8088 — 0x8094
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, // 0x8095 — 0x80A1
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, // 0x80A2 — 0x80AD
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x18, 0x16, 0x14, 0x12, 0x10, // 0x80AE — 0x80BA
0x0E, 0x0C, 0x0A, 0x08, 0x06, 0x04, 0x02, 0xFF, 0xFF, 0x00, 0x00, 0x00, 0x00, // 0x80BB — 0x80C7
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x24, // 0x80C8 — 0x80D4
0x22, 0x21, 0x20, 0x1F, 0x1E, 0x1D, 0x1C, 0x18, 0x16, 0x13, 0x12, 0x10, 0x0F, // 0x80D5 — 0x80E1
0x0A, 0x08, 0x06, 0x04, 0x02, 0x00, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x00, // 0x80E2 — 0x80EE
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, // 0x80EF — 0x80FB
0x00, 0x00, 0x6A, 0x00 // 0x80FC — 0x8100

GT911 Programming Guide_v0.1 (1)

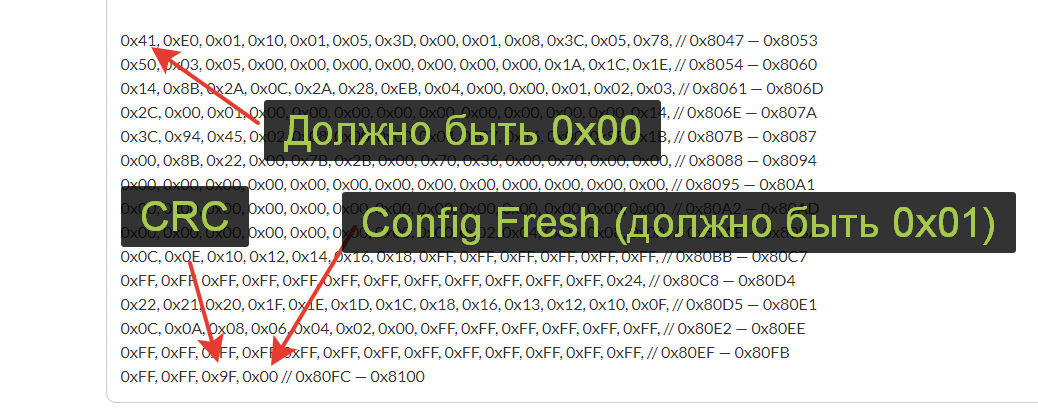

Для загрузки нового конфига
